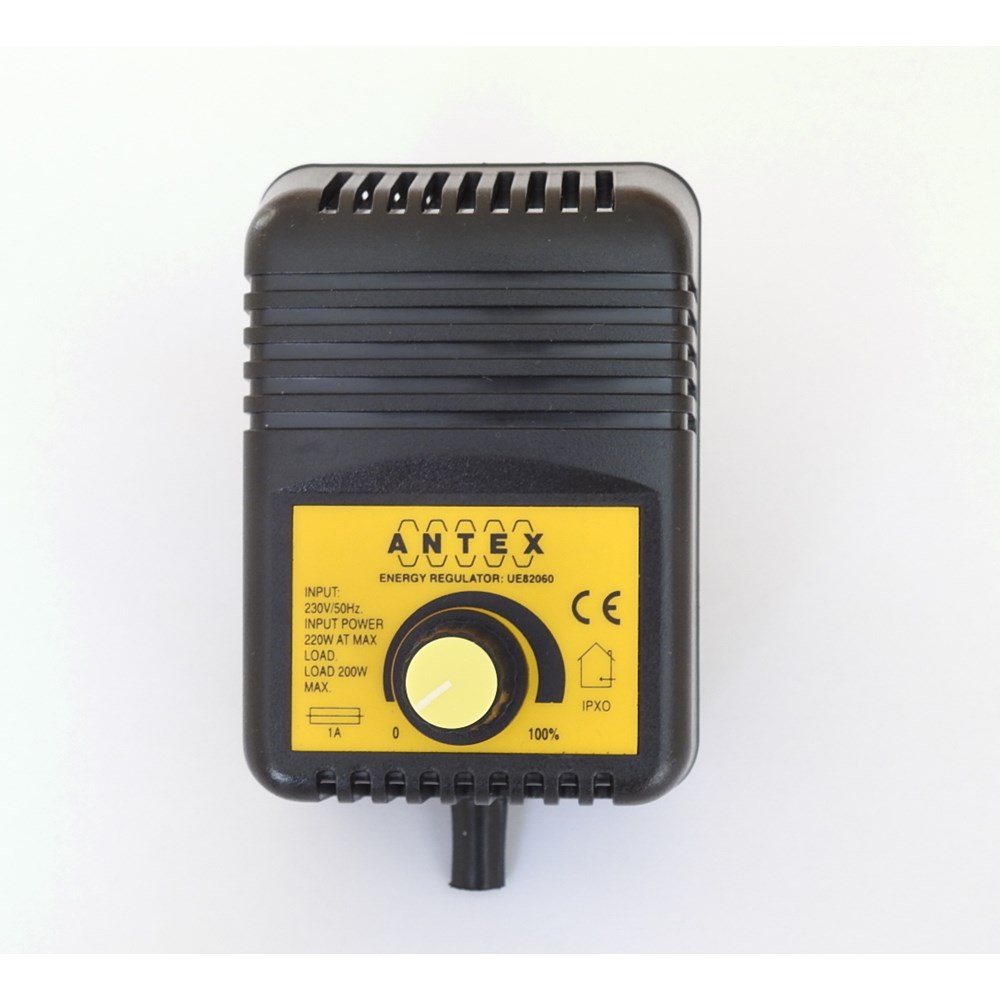

Antex Energy Regulator

Description

ANTEX ENERGY REGULATOR used to adjust the tip temperature of 230V mains powered irons up to 200 watts from 100 – 450°C. Ideal for soldering components sensitive to heat, wax painting, plastic etching etc. The regulator, in a convenient plug-in housing, is connected to the soldering iron in place of the normal 13 amp plug. The scale shows 0 – 100% and may be used with other manufacturers irons up to 200W.

SPECIFICATION
Input voltage………….240V ac
Output voltage………. On/Off 240V ‘On’ time
proportional to setting
Maximum power……. 200W
Fuse……………………..500mA A/S
Control range…………100-400°C (according to iron)
